M33547 Revision 2026: X ray Circuit
Kevin McHugh
Overview
This video explains the fundamental components and principles of an X-ray circuit, focusing on how electrical power is transformed and regulated to produce X-rays. It details the roles of the auto transformer, high tension transformer, filament transformer, and rectifiers. The video elaborates on electromagnetic induction as the basis for transformer operation, distinguishing between filament current and tube current, and explaining thermionic emission and space charge formation. Finally, it touches upon rectification and the concept of ripple effect in power supply.
How was this?
Save this permanently with flashcards, quizzes, and AI chat
Chapters

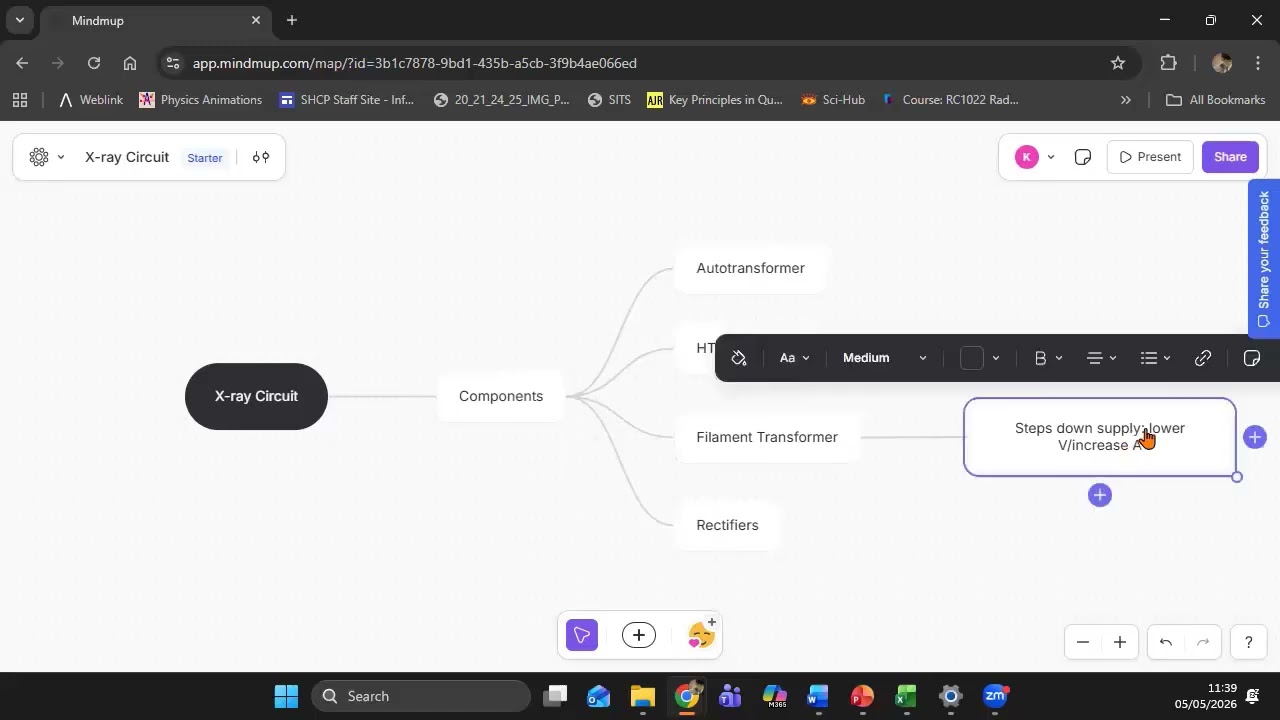

- The X-ray circuit comprises four major components: auto transformer, high tension transformer, filament transformer, and rectifiers.
- The auto transformer stabilizes the incoming voltage supply, ensuring a constant voltage for the subsequent transformers.
- Modern X-ray circuits often rectify the incoming AC to DC, then convert it to high-frequency AC to improve transformer efficiency.
- The high tension transformer steps up the voltage from mains levels (e.g., 240V) to kilovolts (kV) necessary for X-ray production.
- The filament transformer steps down the voltage to heat the filament, enabling thermionic emission.
Understanding these core components is crucial for comprehending how electrical energy is manipulated to generate the specific conditions required for X-ray production.
The high tension transformer takes a 240V supply and increases it to the kilovolts needed to accelerate electrons across the X-ray tube.
- Filament current (measured in amps) flows through the filament to heat it, typically 3-6 amps at 10-12 volts.
- Heating the filament causes thermionic emission, where electrons gain enough energy to escape the filament's surface, forming a space charge.
- Tube current (measured in milliamps) represents the flow of these emitted electrons from the filament to the anode.
- The filament current determines the filament's temperature, which in turn dictates the number of electrons available for emission (tube current).
- Potential difference (kV) across the tube provides the 'push' to accelerate these electrons to the anode.
This distinction is vital because filament current controls the number of X-rays produced (intensity), while potential difference controls their energy (penetration).
Setting the mA on the control console directly influences the filament current, which then determines how many electrons are 'boiled off' to create the space charge.
- Transformers operate on the principle of electromagnetic induction, where a changing magnetic field induces a current in a nearby conductor.
- An alternating current (AC) in the primary coil creates a changing magnetic field in the iron core.
- This changing magnetic field induces an alternating current in the secondary coil.
- Step-up transformers have more coils on the secondary side than the primary, increasing voltage and decreasing current.
- Step-down transformers have more coils on the primary side than the secondary, decreasing voltage and increasing current.
Understanding electromagnetic induction explains how transformers can efficiently change voltage and current levels, which is fundamental to tailoring the electrical supply for X-ray generation.
A step-up transformer with 5 coils on the primary and 20 on the secondary can convert 100V/10A input to 400V/2.5A output, conserving power (P=IV).
- Rectification converts alternating current (AC) to direct current (DC), ensuring electrons flow in one direction from filament to anode.
- Diodes act as one-way valves, allowing current flow in only one direction, essential for consistent electron movement.
- Without rectification, electrons would move back and forth, preventing effective X-ray production.
- Modern X-ray systems often use high-frequency generators, which involve rectifying AC to DC, then inverting it to high-frequency AC for efficiency.
- The 'ripple effect' refers to small fluctuations in the DC supply; multi-phase power and capacitor smoothing minimize this ripple.
Rectification is critical for the directional flow of electrons needed for X-ray production, while understanding ripple helps explain power supply stability and efficiency.
Diodes in the rectification stage function like one-way streets, ensuring that even if the incoming supply alternates, the current across the X-ray tube always flows from the filament to the anode.
Key takeaways
- The X-ray circuit uses transformers to precisely control voltage and current, essential for generating X-rays.
- Filament current heats the filament to produce electrons (thermionic emission), while tube current is the flow of these electrons to the anode.
- Electromagnetic induction is the core principle enabling transformers to step up or step down voltage and current.
- Rectification is necessary to convert AC to DC, ensuring a unidirectional flow of electrons across the X-ray tube.
- The number of coils on a transformer's primary and secondary sides determines whether it steps voltage up or down.
- High-frequency generators improve X-ray circuit efficiency by rectifying and then inverting the power supply.
- Understanding the difference between filament current (Amps) and tube current (mA) is crucial for controlling X-ray output.
Key terms
Auto transformerHigh tension transformerFilament transformerRectifierElectromagnetic inductionFilament currentTube currentThermionic emissionSpace chargePotential difference (kV)Alternating current (AC)Direct current (DC)Ripple effect
Test your understanding
- What is the primary function of the auto transformer in an X-ray circuit?
- How does the filament transformer's function differ from the high tension transformer's function?
- Explain the relationship between filament current, thermionic emission, and tube current.
- What physical principle allows transformers to change voltage and current levels?
- Why is rectification essential for the operation of an X-ray tube?
