CMB Lecture 9
CMB Lectures by Amitabha Bandyopadhyay, IIT Kanpur
Overview
This lecture introduces DNA and RNA hybridization techniques, fundamental to molecular biology. It begins by explaining the underlying principles of hybridization, focusing on stacking interactions and factors influencing duplex stability like temperature, salt concentration, and charge repulsion. The video then details three key hybridization-based technologies: Southern blotting for detecting specific DNA fragments, Northern blotting for RNA detection, and in situ hybridization (ISH) for visualizing RNA expression within its native cellular context. While Southern and Northern blotting are less common now due to PCR advancements, ISH remains a crucial tool for developmental biologists, enabling precise localization of gene expression at the cellular level.
How was this?
Save this permanently with flashcards, quizzes, and AI chat
Chapters
- DNA hybridization relies on complementary base pairing between strands, driven primarily by stacking interactions between nitrogenous bases, not just hydrogen bonds.
- Factors increasing hybrid stability include higher salt concentrations (which neutralize negative phosphate backbone charges) and favorable base stacking.
- Factors decreasing hybrid stability include higher temperatures (due to increased Brownian motion) and electrostatic repulsion between the negatively charged phosphate backbones.
Understanding these fundamental forces is crucial for comprehending how DNA and RNA molecules interact and how experimental conditions can be manipulated to achieve specific binding or prevent it.
Flooding a DNA solution with salt neutralizes the negative charges on the phosphate backbone, increasing the stability of the DNA duplex, unlike protein-protein interactions which often destabilize with increasing salt.

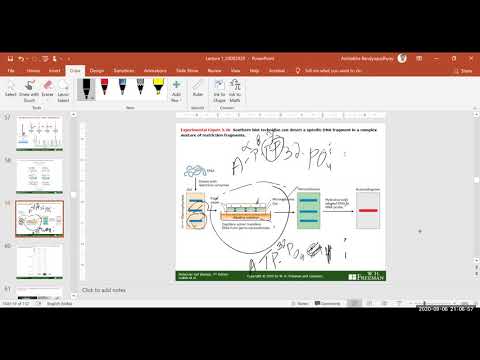

- Southern hybridization detects specific DNA fragments within a complex sample using a labeled DNA probe.
- The process involves digesting DNA with restriction enzymes, separating fragments by size on a gel, and transferring them to a membrane (blotting).
- DNA on the membrane is denatured to single strands, allowing the labeled probe to hybridize to its complementary target sequence.
- Detection is achieved by exposing the membrane to X-ray film, revealing bands where the radioactive probe has bound.
This technique was a cornerstone of molecular biology for identifying specific genes or DNA sequences within an organism's genome.
Using a radioactively labeled DNA probe (e.g., alpha-32P ATP incorporated during PCR) to find a specific gene fragment on a nitrocellulose membrane after it has been transferred from an agarose gel.
- Northern hybridization is analogous to Southern blotting but is used to detect specific RNA molecules, typically mRNA.
- RNA samples are run on denaturing gels (e.g., containing formaldehyde) to prevent secondary structure formation that would hinder hybridization.
- Unlike DNA, RNA is labile in alkali, so formaldehyde is used for denaturation instead of alkaline solutions during transfer.
- The process uses a labeled nucleic acid probe (DNA or RNA) to detect a specific RNA target on a membrane.
This method allows researchers to study gene expression by quantifying the amount of specific mRNA present in a sample.
Detecting the presence of beta-globin mRNA in differentiated erythro-leukemia cells, which is a hallmark of red blood cell development, using a labeled probe after transferring RNA from a gel to a membrane.
- In situ hybridization (ISH) visualizes the location of specific nucleic acid sequences (usually RNA) within intact cells or tissues.
- It's crucial for developmental biology because it shows *where* a gene is expressed, not just *if* it's expressed.
- The process involves fixing tissues to preserve RNA, then hybridizing with a labeled antisense RNA probe.
- Detection uses labeled antibodies against a tag on the probe (e.g., digoxigenin), followed by an enzyme-linked secondary antibody that produces a visible precipitate.
ISH provides critical spatial information about gene expression, allowing researchers to correlate gene activity with specific cell types or developing structures.
Using a digoxigenin-labeled antisense RNA probe to detect beta-globin mRNA within the neurons of an embryo, visualized as a blue precipitate after antibody-based detection, to confirm the gene's expression in that specific tissue.
- Whole mount ISH examines RNA expression patterns in entire embryos or organs, providing a broad overview of tissue-level expression.
- Section ISH involves cutting the fixed tissue into thin slices, allowing for high-resolution visualization of RNA expression at the single-cell level.
- Whole mount ISH is less laborious and good for initial screening (e.g., expression in limb vs. head), while section ISH is more detailed and labor-intensive.
- Advanced ISH techniques can simultaneously detect multiple RNA targets in the same sample.
These variants offer different levels of resolution, enabling researchers to choose the appropriate method for investigating gene expression from broad tissue distribution to precise cellular localization.
Performing whole mount ISH to see if a gene is expressed in the developing limb bud of an embryo, followed by section ISH on that limb bud to pinpoint exactly which cell types within the bud are expressing the gene.
Key takeaways
- DNA hybridization relies on base complementarity and is stabilized by stacking interactions and salt, while destabilized by heat and charge repulsion.
- Southern blotting uses labeled DNA probes to detect specific DNA fragments after gel electrophoresis and blotting.
- Northern blotting detects specific RNA molecules, requiring denaturation to overcome RNA secondary structures.
- In situ hybridization (ISH) is vital for developmental biology as it localizes RNA expression within the native cellular environment.
- ISH uses labeled antisense RNA probes and antibody-based detection systems to visualize gene expression spatially.
- Whole mount ISH provides tissue-level expression patterns, while section ISH offers single-cell resolution.
- While Southern and Northern blots were foundational, PCR and RT-qPCR are now often preferred for DNA/RNA detection due to sensitivity and speed, but ISH remains indispensable for spatial gene expression analysis.
Key terms
DNA hybridizationStacking interactionSouthern hybridizationSouthern blotDNA probeNorthern hybridizationNorthern blotDenaturationIn situ hybridization (ISH)Antisense RNA probeDigoxigeninAlkaline phosphataseWhole mount ISHSection ISH
Test your understanding
- What are the primary forces responsible for the stability of DNA and RNA hybrids, beyond hydrogen bonding?
- How does Southern hybridization allow for the detection of a specific DNA fragment within a complex mixture?
- Why is denaturation of nucleic acids crucial before hybridization in Southern and Northern blotting?
- What is the main advantage of in situ hybridization over techniques like RT-PCR for studying gene expression in developmental biology?
- How does the detection system in RNA in situ hybridization (using digoxigenin and antibodies) allow for visualization of RNA location?
