Training Video 1 : Different Types of Power Plants & Related Parameters
TrackSo
Overview
This video introduces different types of solar power plants: on-grid, off-grid, and hybrid systems. It delves into the fundamental components like solar panels and inverters, explaining their specifications and how they function. The video also covers essential parameters monitored in solar power systems, such as voltage, current, power, energy, and temperature, and discusses the importance of data sheets for understanding equipment capabilities. Finally, it touches upon the role of net meters and the significance of monitoring for performance analysis and preventive maintenance.
How was this?
Save this permanently with flashcards, quizzes, and AI chat
Chapters

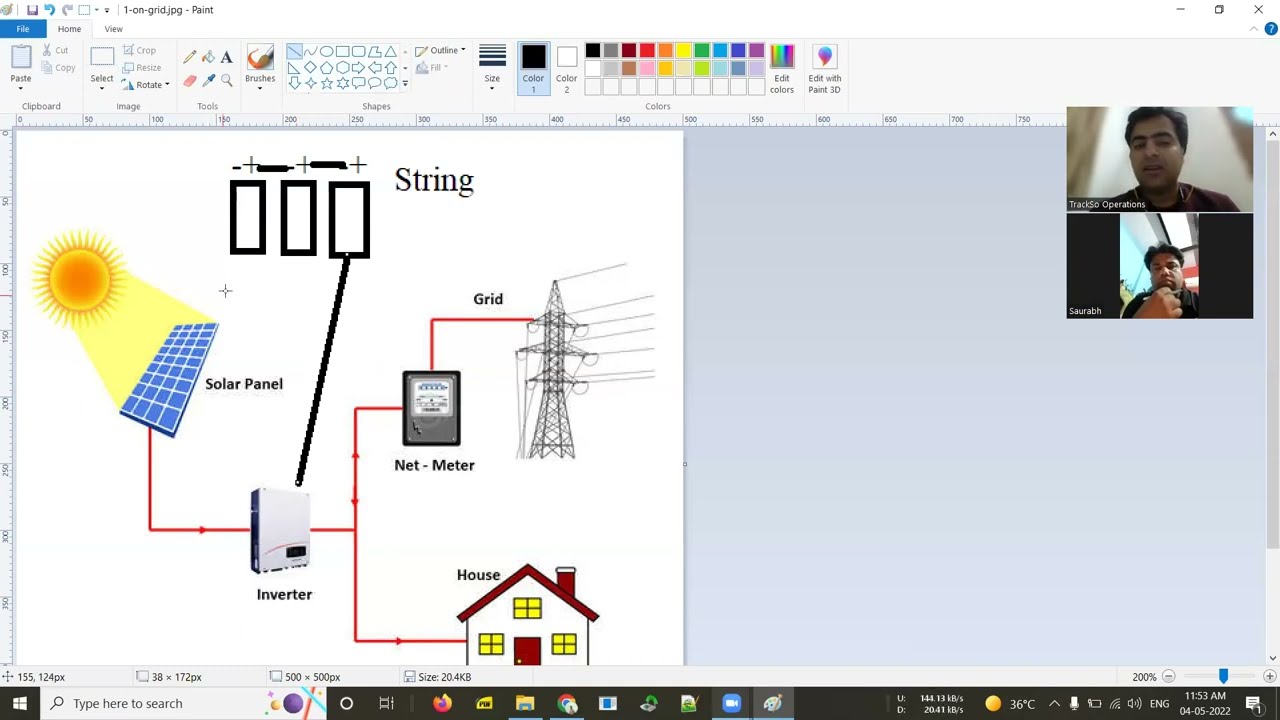

- On-grid power plants are connected to the main electricity grid, allowing excess power to be fed back and drawing power when needed.
- Off-grid power plants operate independently of the grid, storing generated electricity in batteries for later use.
- Hybrid power plants combine features of both on-grid and off-grid systems, utilizing grid connection and battery storage.
- The complexity and cost generally increase from on-grid to hybrid to off-grid systems.
Understanding these different types is crucial for selecting the most suitable solar power system based on location, energy needs, and grid availability.
An on-grid system is common in urban areas where grid connection is reliable, while an off-grid system is more suitable for remote locations without grid access.
- Solar panels convert sunlight into DC electricity using photovoltaic cells.
- Each panel has positive and negative terminals, characteristic of DC power.
- Panel specifications include power output (e.g., 300W) and voltage (e.g., 30-35V under load).
- Panels are often connected in series to form a 'string' to increase voltage, which is then fed into the inverter.
Knowing the specifications of solar panels helps in understanding their energy generation capacity and how they are configured within a system.
A single 300W solar panel might output around 30-35 volts when connected and under sunlight.
- Inverters are the 'brain' of the solar system, converting DC electricity from panels to AC electricity for household use.
- Key inverter parameters include maximum DC input voltage, MPPT (Maximum Power Point Tracking) voltage range, and AC output power.
- Inverters have a specific operating voltage range (e.g., 200-1000V) within which they function optimally.
- MPPT trackers help maximize power extraction from the solar array under varying conditions.
- Inverter efficiency, typically around 98%, can be affected by temperature and age.
Inverters are critical for system efficiency and performance; understanding their parameters is essential for proper system design and troubleshooting.
An inverter might have an MPPT voltage range of 200-1000V, meaning at least 7-8 panels (each producing ~30-35V) need to be connected in series to meet the minimum input voltage requirement.
- Power (kW) is the instantaneous rate of energy transfer, while energy (kWh) is the total amount consumed or generated over time.
- Energy consumption is calculated by multiplying power by time (e.g., 1kW for 2 hours = 2 kWh).
- Inverter temperature is a critical parameter; high temperatures can reduce efficiency and output.
- Apparent power (VA), active power (W/kW), and reactive power (VAR) are related concepts, with active power being the usable energy.
Differentiating between power and energy is fundamental for understanding electricity bills and system performance over time. Temperature monitoring is key to ensuring optimal operation.
A 1kW load running for 4 hours consumes 4 kWh of energy, which is what is typically billed.
- Net meters measure both electricity imported from and exported to the grid, calculating the net consumption or export.
- Inverters provide detailed DC and AC parameters, while meters primarily focus on AC parameters and energy flow.
- Monitoring systems collect data on parameters like voltage, current, power, temperature, and operating states.
- Analyzing this data helps in identifying performance issues, planning maintenance, and verifying system output against expectations.
Effective monitoring allows for proactive problem-solving, ensuring the solar system operates at peak performance and meets energy generation goals.
If a net meter shows a significant drop in energy export during sunny hours, it might indicate a problem with the solar panels or inverter, prompting further investigation.
- Battery parameters include voltage, current, state of charge (SOC), and power (charge/discharge).
- Inverters can have different operating modes (e.g., grid-tied, battery backup, hybrid) that prioritize energy sources.
- Three-phase inverters are used for higher power systems and distribute power equally across phases.
- Data sheets are essential for understanding the capabilities and limitations of any solar equipment.
Understanding advanced parameters and system configurations allows for more sophisticated system management, optimization, and troubleshooting.
An inverter's operating mode can be set to prioritize solar energy first, then battery, and finally the grid, to minimize electricity costs.
Key takeaways
- Solar power plants come in three main types: on-grid, off-grid, and hybrid, each with distinct advantages and applications.
- Solar panels convert sunlight to DC, which inverters then convert to usable AC power.
- Understanding key parameters like voltage, current, power, energy, and temperature is vital for assessing solar system performance.
- Inverter specifications, including MPPT range and efficiency, significantly impact overall system output.
- Net metering is crucial for systems connected to the grid, tracking both energy import and export.
- Regular monitoring of system parameters allows for early detection of issues and proactive maintenance, ensuring optimal energy generation.
- Data sheets are indispensable resources for understanding the technical capabilities of solar components.
